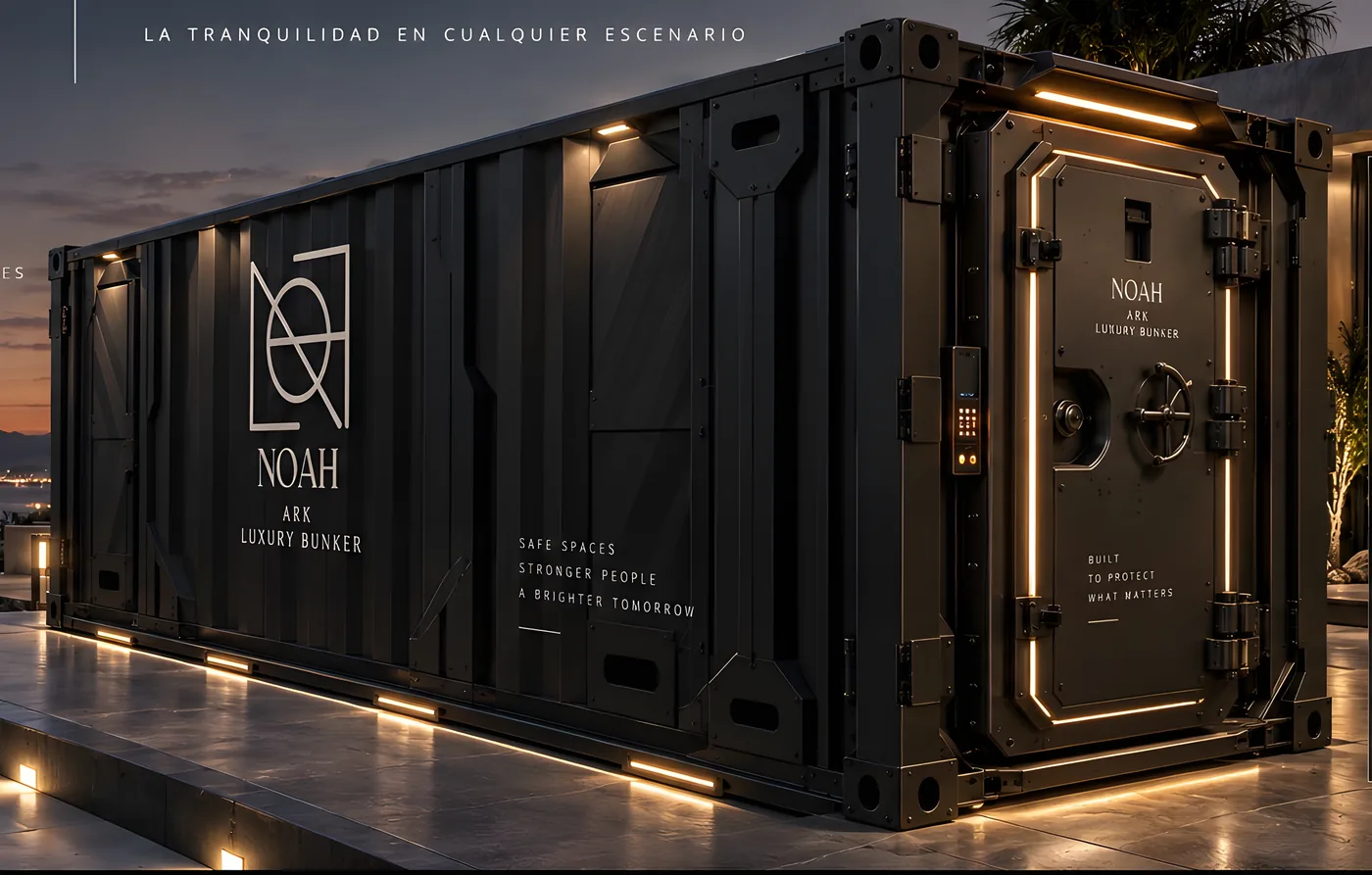

Noah Ark · Reinforced safety module

A real shelter

Two modular configurations for protection, autonomy and temporary shelter in homes, estates, resorts and critical facilities. Built in the factory, shipped assembled and commissioned on site.

Commercial catalogue · September 2026

Two configurations for two different needs

What separates the versions is not the finish: it is how many people fit inside and how many hours it can hold on its own. Everything else — structural reinforcement, multipoint security door, climate control and basic emergency systems — is in both.

BASIC · NA-20

Essential configuration

Compact module for 4–6 occupants and a 24-hour autonomy target.

€250,000 VAT not included
- Reinforced structure and multipoint security door
- 10 kWh battery and 6–8 kVA generator
- Compact bathroom, kitchen, fridge, storage and climate control
- Five-point seats, fire and intrusion detection
- 4G/5G, internal Wi-Fi, cameras and GPS beacon
TOP · NA-40

Extended platform

Double-length platform for 6–8 occupants and a 72-hour autonomy target.

€400,000 VAT not included
- Redundancy on critical equipment and a sealed fire bulkhead
- 20 kWh battery and 10–12 kVA generator
- 750 litres of drinking water and extended reserves
- HEPA H13 filtration with dual fan and manual bypass
- Satellite link included, on top of 4G/5G and beacon

BASIC and TOP, side by side

Feature	BASIC · NA-20	TOP · NA-40
Indicative price	€250,000 + VAT	€400,000 + VAT
External dimensions	6.058 × 2.438 × 2.591 m	12.192 × 2.438 × 2.591 m
Target usable space	≈ 9.9 m²	≈ 21.2 m²
Protected occupancy	4–6 people	6–8 people
Base autonomy	24 hours	72 hours
Drinking water	300 L	750 L
LiFePO₄ battery	10 kWh	20 kWh
Generator set	6–8 kVA	10–12 kVA
Ventilation	F7 + activated carbon	HEPA H13 + activated carbon
Satellite link	Optional	Included
Emergency oxygen	Optional	Basic reserve
Target installed mass	10–16 t	18–28 t

Base prices cover reinforced security. Certified armour, CBRN, EMP, full seismic isolation and collapse reinforcement are quoted separately.

Modular protection architecture

The base objective is a reinforced, self-sufficient space. Special performance depends on the packages contracted.

01

Sacrificial skin

Replaceable outer panel, anti-corrosion protection and first-stage impact dissipation.
02

Primary frame

Closed frames, longitudinal reinforcement and continuous load paths.
03

Multilayer protection

Structural steel and anti-intrusion protection. Aramid, ceramic and certified armour are optional.
04

Sealed envelope

Sealing against water, dust and smoke. Overpressure and the CBRN package are optional.
05

Inner capsule

Floating floor, anchored furniture and life systems on anti-vibration mounts.

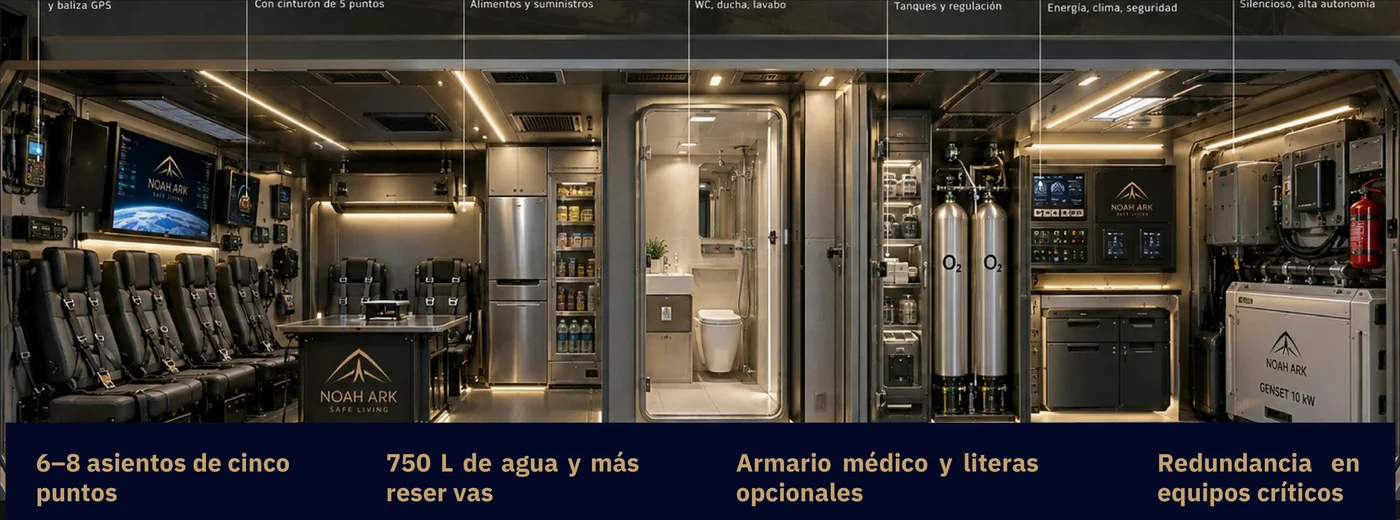

The module end to end: command station, harnessed seats, kitchen and stores, compact bathroom, water tanks and the power and climate cabinet. — TOP · NA-40 version, end to end

Where it goes

Surface

Fast installation on a slab within a protected perimeter.
Integrated

Connected to a villa, a resort or a critical facility.
Semi-buried

Discretion, thermal protection and controlled access.
Underground

Dedicated civil works, drainage and redundant escape routes.

Every location requires geotechnical, structural, access, ventilation and evacuation studies.

What keeps the module standing

Sealed door, operable without power

Reinforced steel leaf of 80–120 mm, welded structural frame and multipoint locking with four to six bolts. Electronic access control with mechanical backup, anti-prying protection and a drained threshold. Final resistance depends on the installed assembly: leaf, frame, anchors, hinges, lock and seals.
Anchoring and seismic protection

BASIC uses elastic mounts and anti-tipping anchors; TOP, reinforced elastomeric bearings. Mechanical stops with calculated clearances, flexible connections with shut-off valves for water, power and drainage, and a tilt sensor as standard. Full seismic isolation with certified bearings is quoted separately.
Filtered ventilation and oxygen

≥ 200 m³/h in BASIC and ≥ 350 m³/h in TOP. F7 with activated carbon or HEPA H13 depending on version, sensors for CO₂, CO, smoke, temperature and humidity, and a dual fan with manual bypass in TOP. The overpressure kit and the certified CBRN package are optional.
Power and operational autonomy

Silent diesel generator with ATS and external exhaust, LFP battery for critical loads and optional 2–4 kWp solar. Load management works in three tiers: air, control and communications first; water and refrigeration next; comfort last, with automatic shedding of non-critical loads.
Communications, beacon and command

4G/5G router with a wired network for critical equipment, GNSS beacon with SOS message and its own battery, and a local panel showing power, water, access, cameras and alarms. The satellite link is included in TOP. EMP cabinet and hardened communications are quoted separately.
Real habitability

Individual seats anchored to structural rails with five-point harnesses, enough spacing to evacuate in low light, a compact bathroom with separated grey and black water, a 90 or 150 L fridge and an electric hob. First-aid kit included; defibrillator and telemedicine optional.

What is included and what is quoted separately

Base prices do NOT include ballistic, blast, CBRN or EMP protection. These are quoted separately and increase mass, cost, lead time and foundation requirements.

Included

Anti-intrusion

Structural reinforcement, metal panels and protection of access points.
Optional

Ballistic

Certified envelope and glazing at the contracted level (EN 1522/1523 and EN 1063).
Optional

Blast

Specific solution defined by engineering and testing, only in special configurations.
Optional

CBRN / EMP

Advanced filtration, sealed overpressure and dedicated electronic protection.

From engineering to handover

01
Site engineering

Survey, geotechnics, loads, access, crane, permits and escape routes.
02
Factory build

Frame, armour, systems, interior, factory testing and documentation.
03
Special transport

Transport frame, escort where applicable and lifting plan.
04
Civil works and lift

Slab, pit or gallery, drainage, isolators, anchors and connections.
05
Commissioning

Tightness test, loads, communications, training and maintenance plan.

14–22 weeks

target build time by version and factory load
1–3 weeks

installation and commissioning, civil works aside
2 per year

recommended preventive maintenance
24/7

optional remote monitoring

The price excludes VAT, civil works, permits, special transport, crane and site adaptations. The final price is subject to the site study, detailed engineering, the scope of civil works and applicable regulations.
